LED Display System

Product filter

Showing all 10 results

  • LED UNILUMIN UHWII1.5

    LED UNILUMIN UHWII1.5
    • Model: UHWII1.5
    • Pixel Pitch: 1.5mm
    • Pixel Density: 396,550 dots/m²
    • Panel Size (W×H×D): 609.92mm×343.08mm × 68mm
    • Panel Resolution: 384 × 216 dots
    • Material: Die-cast Aluminum
    • Brightness: 600 cd/m²
    • Color Temperature: 2,000 – 9,500 K Adjustable
    • Viewing Angle (H/V): 160°/160°
    • Panel Weight: 7 kg
    • Aspect Ratio (W:H): 16:9
    • Service Access : Front
    • Input Power/Panel (Max.): 140 W
    • Input Power/Panel (Ave.): 46 W
    • Ingress Protection: IP60
    • Input Voltage: 100 – 240 VAC
    • Refresh Rate: 1,920-3,840 Hz
    • Operating Temperature/Humidity: -10°C to 45°C
    • /10% – 80% RH
    • Storage Temperature/Humidity: -20°C to 55°C
    • /10% – 85% RH
    Read more

  • LED UNILUMIN UHWII2.5

    LED UNILUMIN UHWII2.5
    • Model: UHWII1.9
    • Pixel Pitch: 1.9mm
    • Pixel Density: 275,267 dots/m²
    • Panel Size (W×H×D): 609.92mm×343.08mm × 68mm
    • Panel Resolution: 320 × 180 dots
    • Material: Die-cast Aluminum
    • Brightness: 800 cd/m²
    • Color Temperature: 2,000 – 9,500 K Adjustable
    • Viewing Angle (H/V): 140°/140°
    • Panel Weight: 7 kg
    • Aspect Ratio (W:H): 16:9
    • Service Access : Front
    • Input Power/Panel (Max.): 120 W
    • Input Power/Panel (Ave.): 40 W
    • Ingress Protection: IP60
    • Input Voltage: 100 – 240 VAC
    • Refresh Rate: 1,920-3,840 Hz
    • Operating Temperature/Humidity: -10°C to 45°C
    • /10% – 80% RH
    • Storage Temperature/Humidity: -20°C to 55°C
    • /10% – 85% RH
    Read more

  • LED UNILUMIN UHWII1.2

    LED UNILUMIN UHWII1.2
    • Model:UHWII1.2
    • Pixel Pitch: 1.2mm
    • Pixel Density: 620,001 dots/m²
    • Panel Size (W×H×D): 609.92mm×
    • 08mm × 68mm
    • Panel Resolution: 480 × 270 dots
    • Material: Die-cast
    • Aluminum
    • Brightness: 600 cd/m²
    • Color Temperature: 2,000 – 9,500 K Adjustable
    • Viewing Angle (H/V): 160°/160°
    • Panel Weight: 7 kg
    • Aspect Ratio (W:H): 16:9
    • Service Access : Front
    • Input Power/Panel (Max.): 140 W
    • Input Power/Panel (Ave.): 46 W
    • Ingress Protection: IP60
    • Input Voltage: 100 – 240 VAC
    • Refresh Rate: 1,920-3,840 Hz
    • Operating Temperature/Humidity: -10°C to 45°C
    • /10% – 80% RH
    • Storage Temperature/Humidity: -20°C to 55°C
    • /10% – 85% RH
    Read more

  • LED UNILUMIN K-SLIM 3.9

    LED UNILUMIN K-SLIM 3.9
    • Model: Kslim3.9
    • Pixel Pitch: 3.9mm
    • Pixel Density: 65,536 dots/m²
    • Panel Size (W×H×D): 500mm × 500mm × 88.5mm
    • 500mm × 1,000mm × 88.5mm
    • Panel Resolution: 128 x 128 dots, 128 x 256 dots
    • Material: Die-cast Aluminum
    • Brightness: 1,000 cd/m²
    • Color Temperature: 2,000 – 9,300 K Adjustable
    • Viewing Angle (H/V): 160°/140°
    • Panel Weight: 7.1 kg, 12.1 kg
    • Contrast Ratio (W:H): 5,000:1
    • Service Access: Front & Rear
    • Input Power/Panel (Max.): 520W
    • Input Power/Panel (Ave.): 173W
    • Ingress Protection: Front IP40, Rear IP20
    • Input Voltage: 200 – 240 VAC
    • Refresh Rate: 3,840 Hz
    • Operating Temperature/Humidity: -40°C – 60°C/10% – 90% RH
    • Storage Temperature/Humidity: 0°C – 40°C/10% – 60% RH
    Read more

  • LED UNILUMIN K-SLIM 2.9

    LED UNILUMIN K-SLIM 2.9
    • Model: Kslim2.9
    • Pixel Pitch: 2.97mm
    • Pixel Density: 112,896 dots/m²
    • Panel Size (W×H×D): 500mm × 500mm × 85mm
    • 500mm × 1,000mm × 85mm
    • Panel Resolution: 168 x 168 dots
    • 168 x 336 dots
    • Material: Die-cast Aluminum
    • Brightness: 1,000 cd/m²
    • Color Temperature: 2,000 – 9,300 K Adjustable
    • Viewing Angle (H/V): 160°/140°
    • Panel Weight: 7.06 kg, 11.84 kg
    • Contrast Ratio: 5,000:1
    • Service Access : Front & Rear
    • Input Power/Panel (Max.): 600W
    • Input Power/Panel (Ave.): 200W
    • Ingress Protection: Front IP40, Rear IP20
    • Input Voltage: 200 – 240 VAC
    • Refresh Rate: 3,840 Hz
    • Operating Temperature/Humidity: -40°C – 60°C/10% – 90% RH
    • Storage Temperature/Humidity: 0°C – 40°C/10% – 60% RH
    Read more

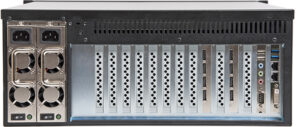

  • WBC90

    WBC90
    • Processor: I7-7700 3.6GHz Quad Core
    • Chipset:  Q170
    • RAM:  32GB DDR4
    • Storage:  RAID1 SSD 240GB Hot Swappable
    • Ethernet:  2x 10/100/1000 Gbps
    • Power Supply:  600W RPSU / 100-240W 50-60Hz
    • OS Windows:  10 LTSC 2019
    • Card Capacity:  9
    • Rack Profile:  4U
    • Dimensions:  430 x 546 x 176mm
    • Output cards:  * * output card types cannot be mixed in one system
    • DP4OUT:  4x Display Port @ 2560 x 1600 at 60 Hz ( max359Mpixels/s)
    • or 2x 3840 x 2160 @ 30Hz
    • DP4KOUT:  4x Display Port @ 3840 x 2160 at 60Hz (max 594 MP/s)
    • IN4HDMI:  4x HDMI Inputs – Channels 1 & 3: 2x3840x2160p @30 fps
    • Channels 2 & 4: 2x1920x1080p @60 fps
    • IN4DVI:  4x DVI Inputs – Channels 1 & 3: 2x3840x2160p @30 fps
    • Channels 2 & 4: 2x1920x1080p @60 fps
    • IN2HDMI4K:  2x HDMI @ 4096x2160p at 60Hz
    • IN2DP4K:  2x Display Port @ 4096x2160p at 60Hz
    • IN12IP:  Up to 3x4096x2160p @ 30fps or 6x1920x1080p @ 60fps / 12 x 1080p @ 30 fps or 10 x 1080i @ 30fps /
    • 50+ D1 @ 30 fps
    • IN8SD:  8x SD-BNC 720 x 576 x 16bit
    Read more

  • WBC10

    WBC10
    • Processor: I5-8400 2.8GHz Six Core
    • Chipset: Z390
    • RAM: 16GB DDR4
    • Storage: RAID1 SSD M.2 256GB
    • Ethernet: 2x 10/100/1000 Gbps
    • Power Supply: 650W RPSU / 100-240V 50-60Hz
    • OS Windows: 10 LTSC 2019
    • Card Capacity: Up to 4x HDMI inputs
    • Rack Profile: 2U
    • Dimensions: 480 x 574 x 88mm
    • Output Cards:DP4OUTQP1 4x 4K Display Port outputs
    • Input Cards:YN2HDMI (low profile)
    • 2x HDMI: @ 1920×1200 at 60Hz
    Read more

  • WBC40

    WBC40
    • Processor: I7-9700 3GHz Eight Core
    • Chipset: Z390
    • RAM: 16GB DDR4
    • Storage: RAID1 SSD 240GB Hot Swappable
    • Ethernet: 2x 10/100/1000 Gbps
    • Power Supply: 600W RPSU / 100-240V 50-60Hz
    • OS Windows: 10 LTSC 2019
    • Card Capacity: 4 slots
    • Rack Profile: 4U
    • Dimensions: 430 x 546 x 176mm
    • DP4OUTQP1: 4x 4K Display Port outputs
    Read more

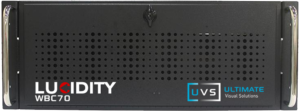

  • WBC70

    WBC70
    • Processor: Xeon-W 2235 3.8GHz 6-Core
    • Chipset: C422
    • RAM: 16GB DDR4 – ECC (MAX 512GB)
    • Storage: RAID1 SSD 240GB Hot Swappable
    • Ethernet: 2x 10/100/1000 Gbps
    • Power Supply: 800W RPSU / 100-240V 50-60Hz
    • OS Windows: 10 LTSC 2019
    • Card Capacity 6 or 7 depending on card types
    • Rack Profile: 4U
    • Dimensions: 430 x 546 x 176mm
    • MHDMI4OUT/MDP4OUT: 4x HDMI or Display Port @ 4096×2160 60Hz
    • HDMI or Display Port to be confirmed with order
    • Maximum of 4 output cards per system
    • DP4OUTQP2:
    • 4x Display Port (With DVI Adapters)
    • 4x 4096×2160 @ 120Hz
    • 4x 5120×2880 @ 60Hz
    • MN4HDMI: 4x Mini HDMI 3840×2160@30HZ – mini HDMI to HDMI adapters provided
    • MN2DP4K 2x Display Port @ 4096x2160p at 60Hz
    Read more

  • LED UNILUMIN UHWII1.9

    LED UNILUMIN UHWII1.9
    • Model: UHWII1.5
    • Pixel Pitch: 1.5mm
    • Pixel Density: 396,550 dots/m²
    • Panel Size (W×H×D): 609.92mm×343.08mm × 68mm
    • Panel Resolution: 384 × 216 dots
    • Material: Die-cast Aluminum
    • Brightness: 600 cd/m²
    • Color Temperature: 2,000 – 9,500 K Adjustable
    • Viewing Angle (H/V): 160°/160°
    • Panel Weight: 7 kg
    • Aspect Ratio (W:H): 16:9
    • Service Access : Front
    • Input Power/Panel (Max.): 140 W
    • Input Power/Panel (Ave.): 46 W
    • Ingress Protection: IP60
    • Input Voltage: 100 – 240 VAC
    • Refresh Rate: 1,920-3,840 Hz
    • Operating Temperature/Humidity: -10°C to 45°C
    • /10% – 80% RH
    • Storage Temperature/Humidity: -20°C to 55°C
    • /10% – 85% RH
    Read more
